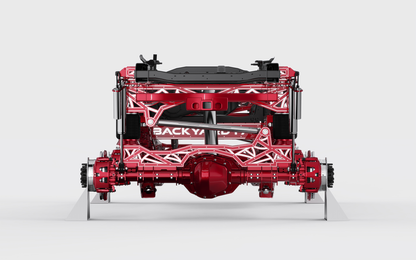

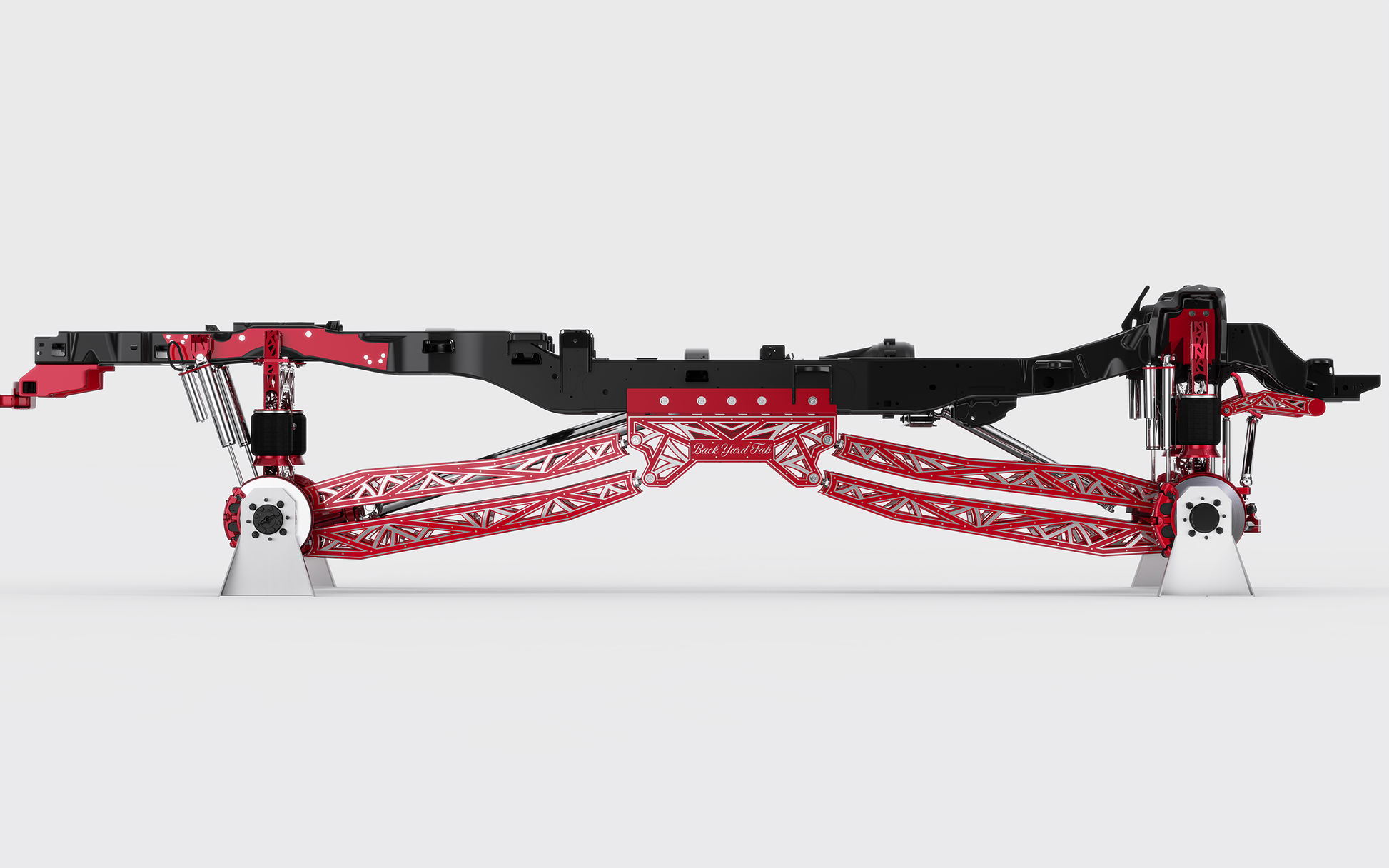

You guys know it is!! The long anticipated FULL BOLT ON Bag kit! One of the very only of its kind on the market, but with a grand twist. Full show style, double overlayed, and ready to get you a best of show, anywhere you go!!
Key features include:
A36 American Made Carbon steel Construction Fiber laser cut for unmatched cut quality
Drilled and tapped overlay holes for all overlays

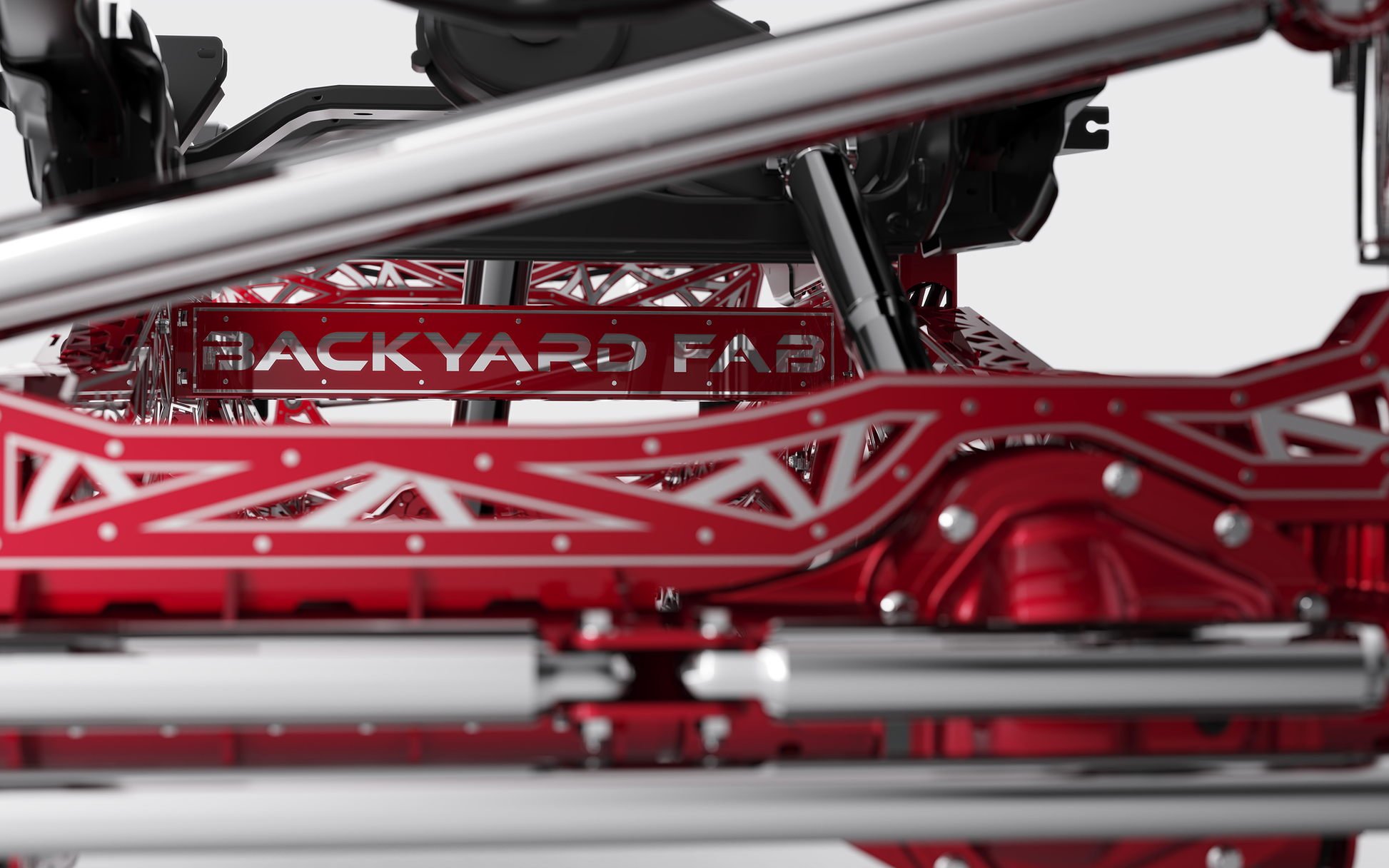

Dual overlay design with an 18 gauge steel and 16 gauge mirrored stainless

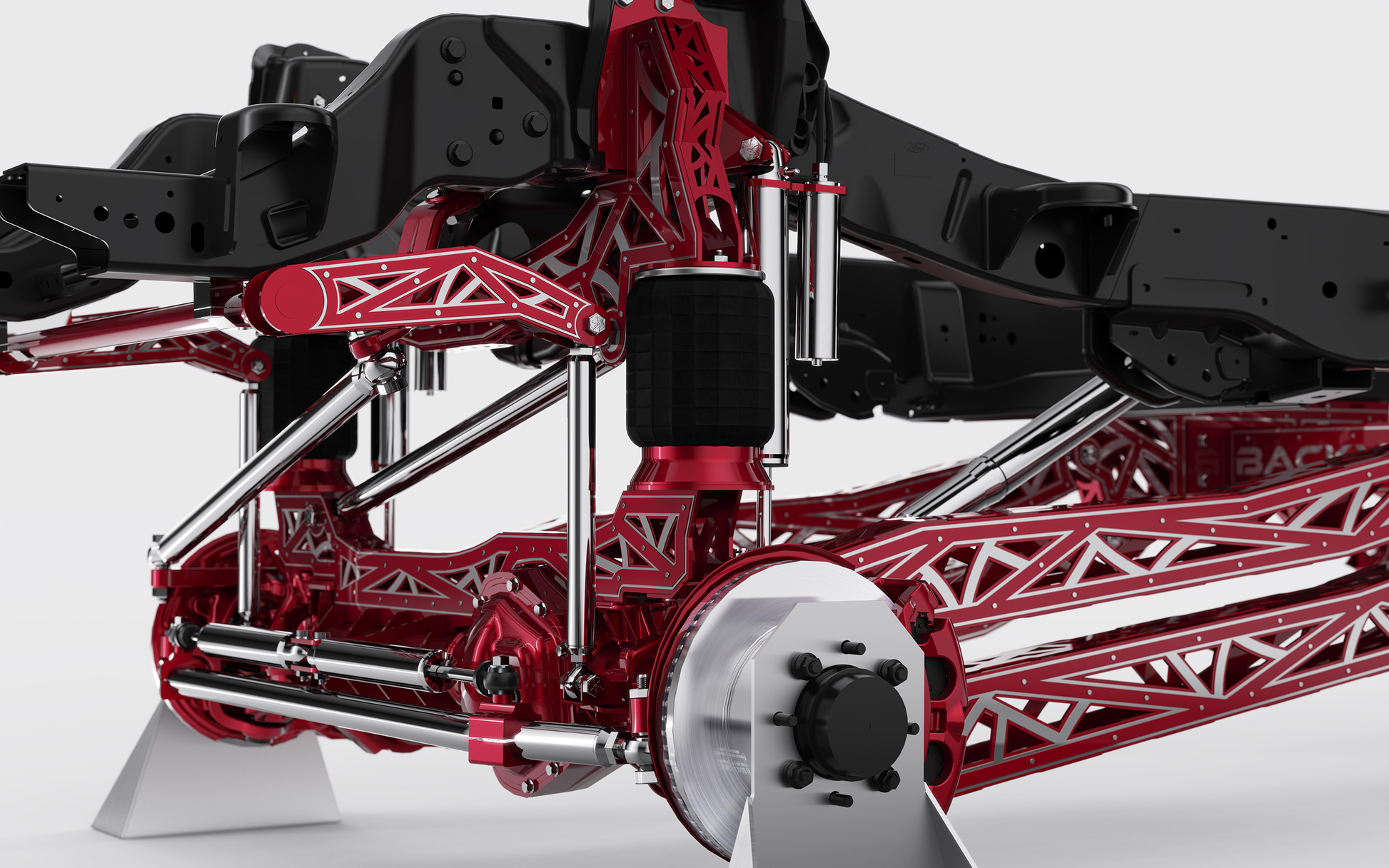

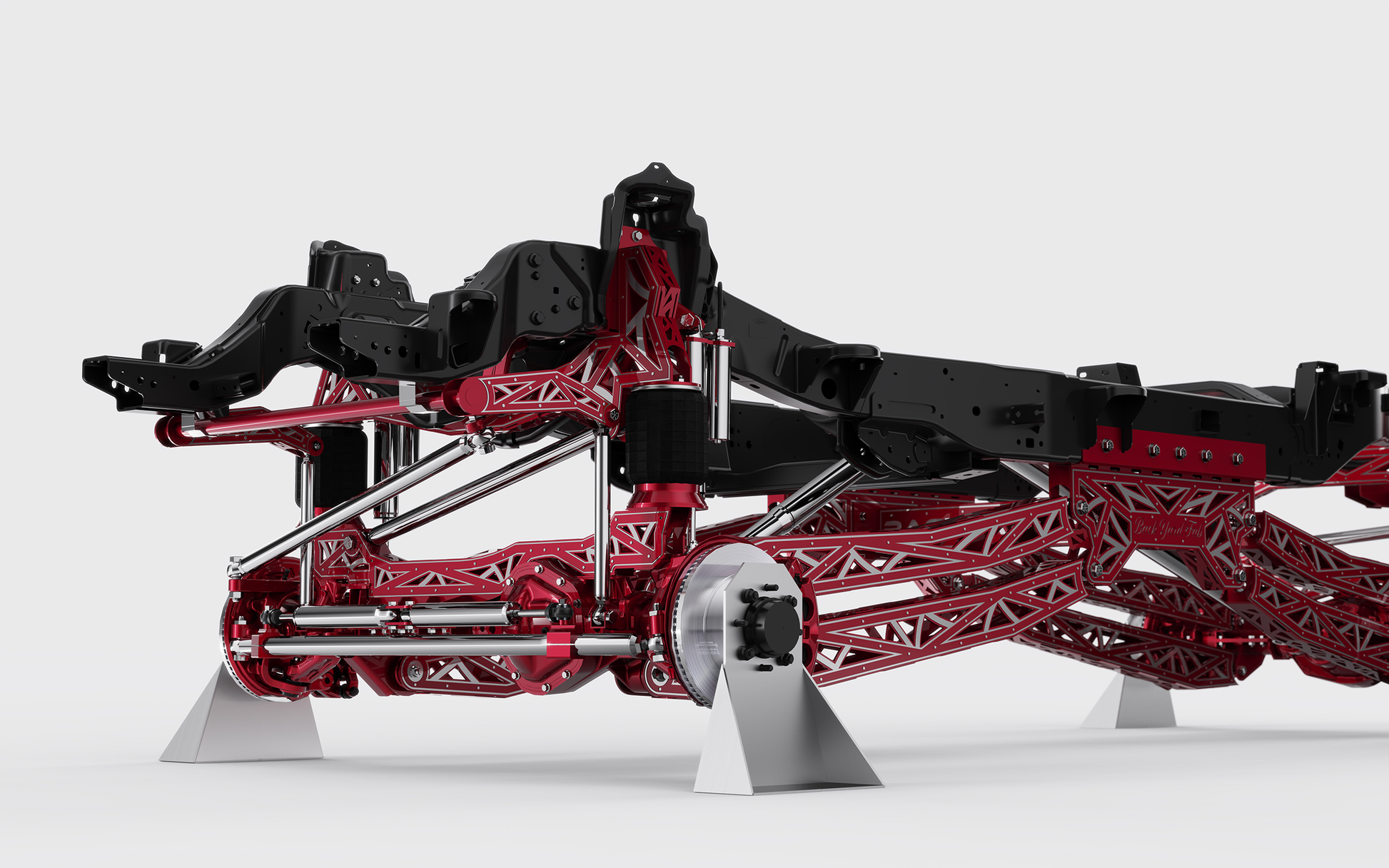

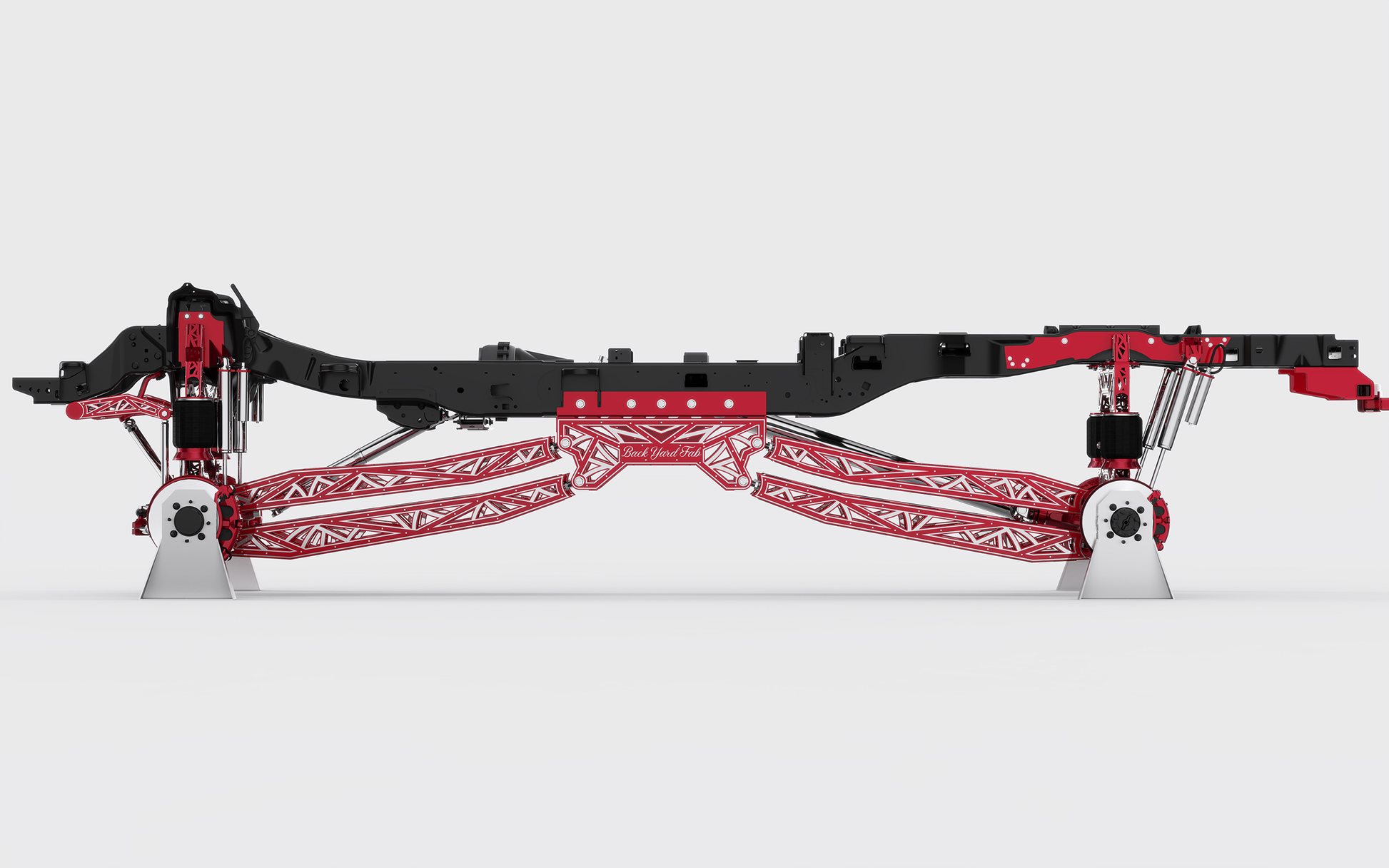

Four link center cradle for proper axle alignment and to match factory geometry

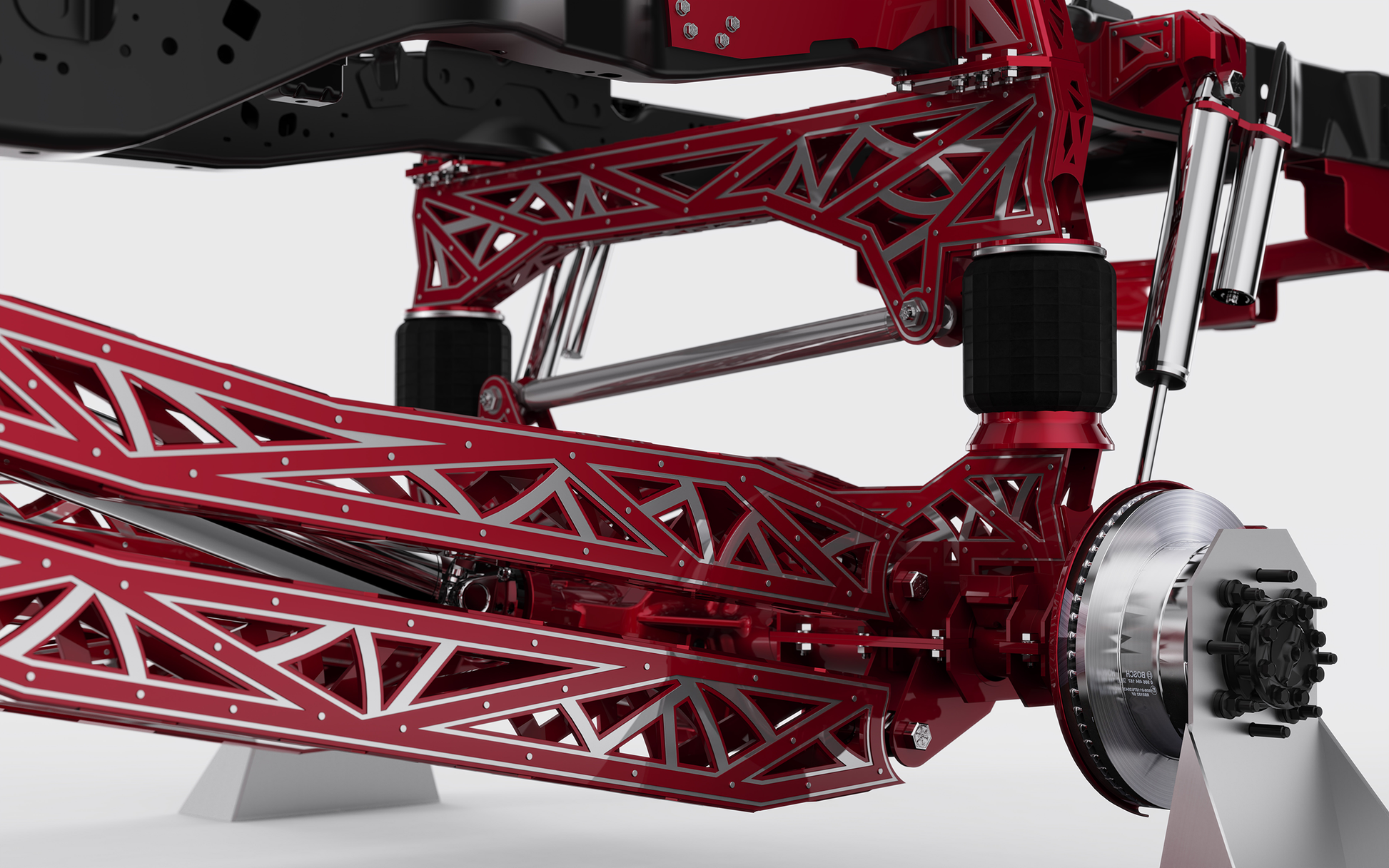

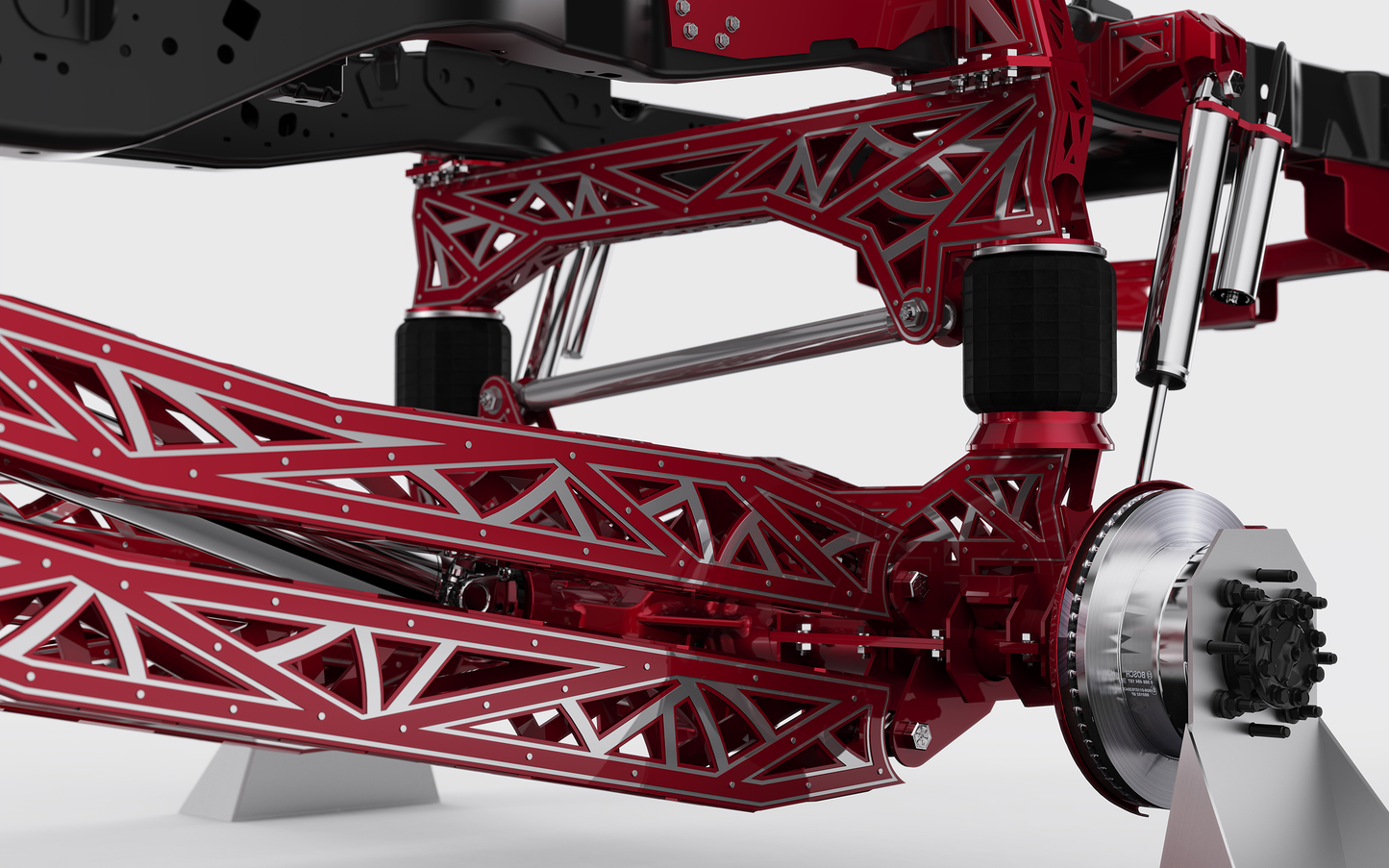

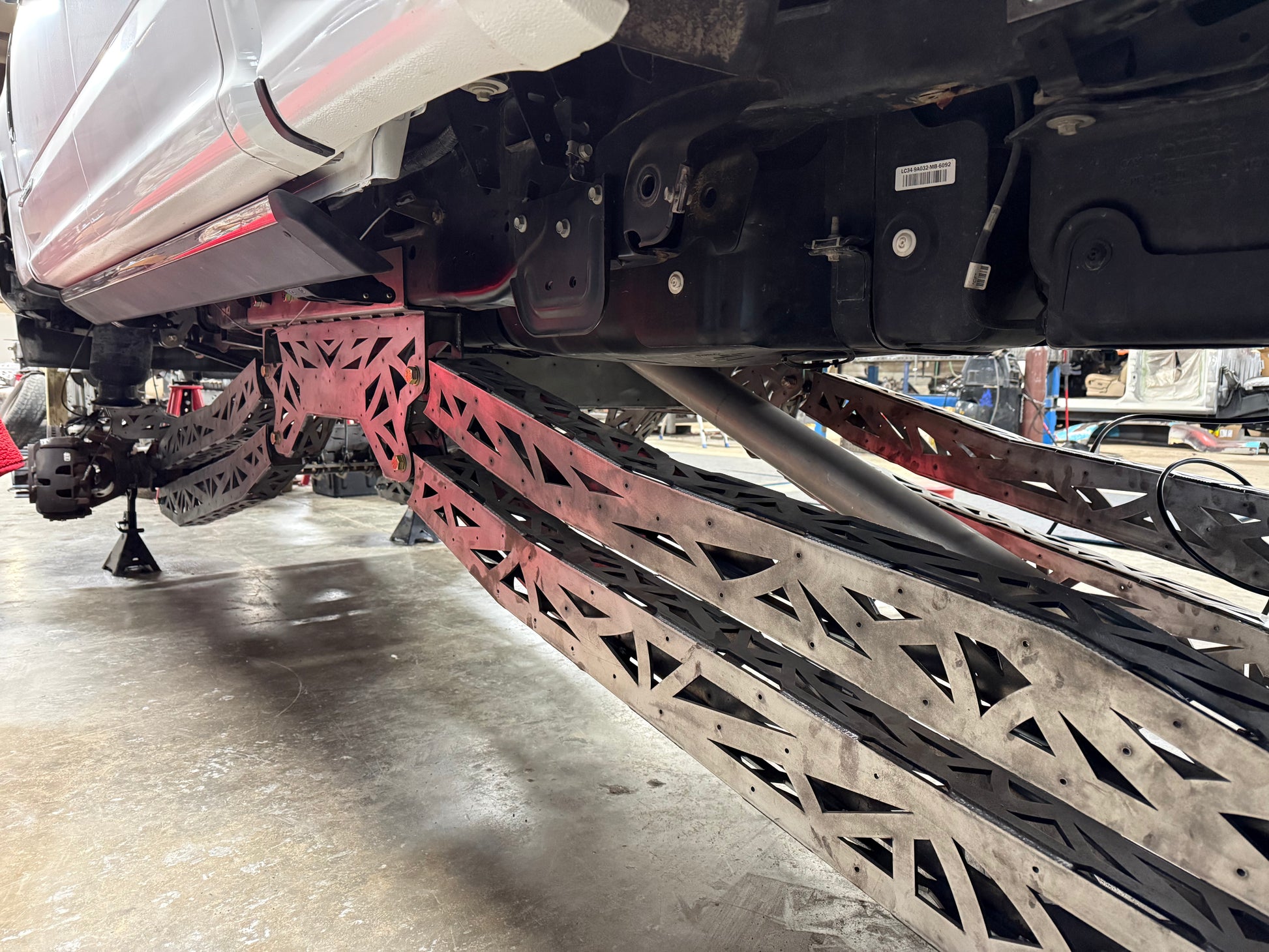

CNC Style 4 Link long arms for improved ride quality (Tube also avaible on request) utilizing 1.25 Fully rebuildable AND greaseable Johnny style joints! No squeaky heims!

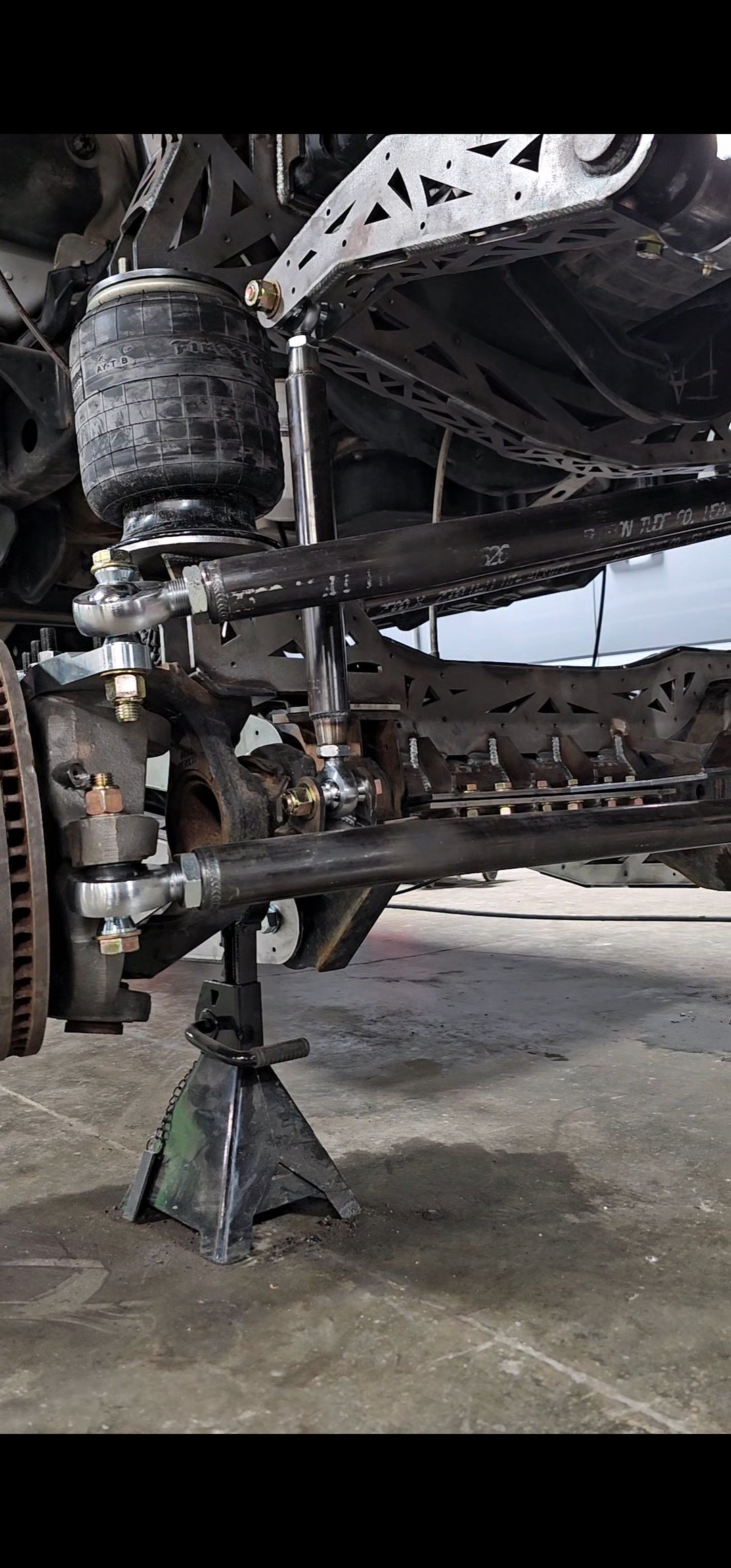

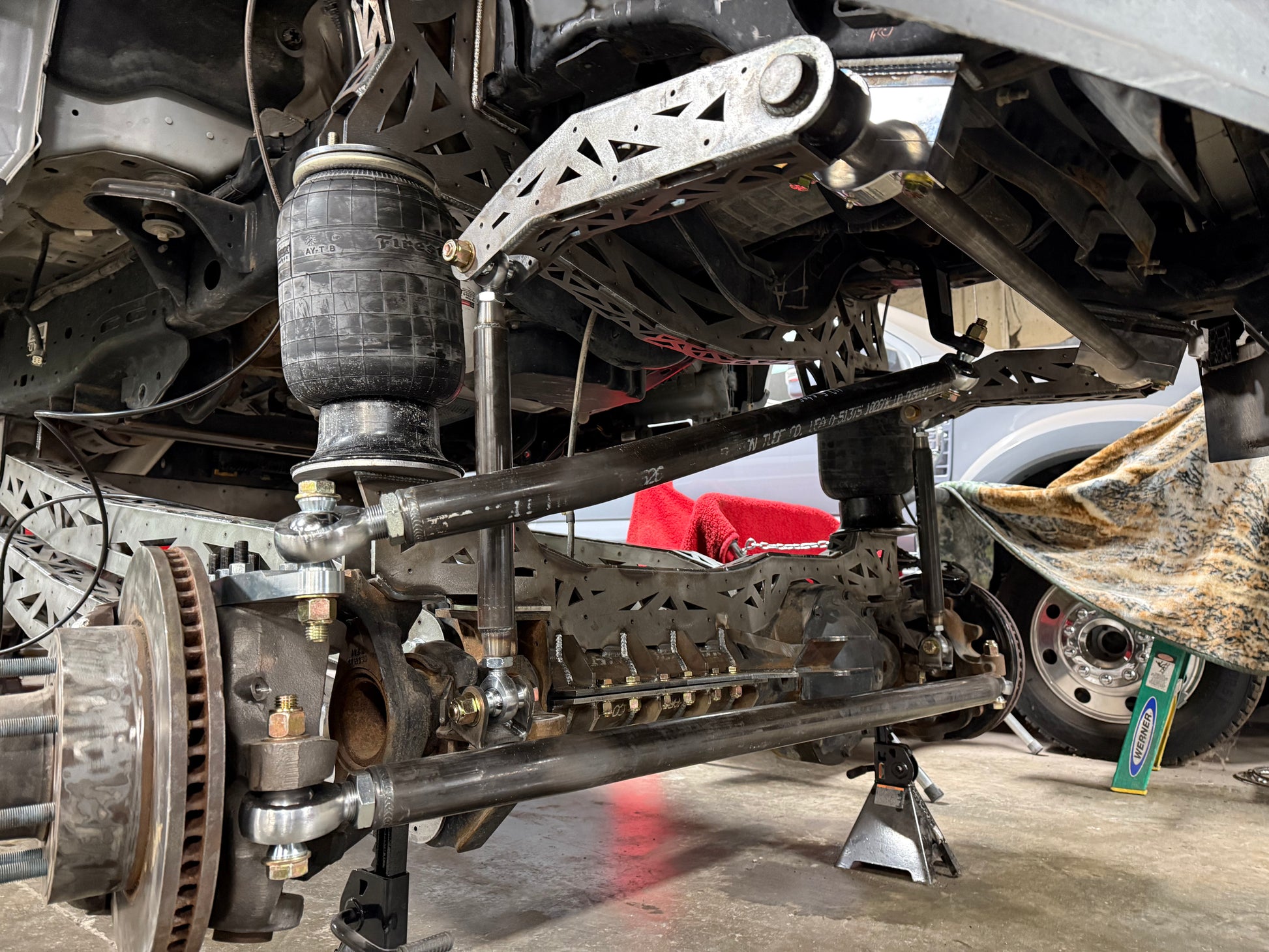

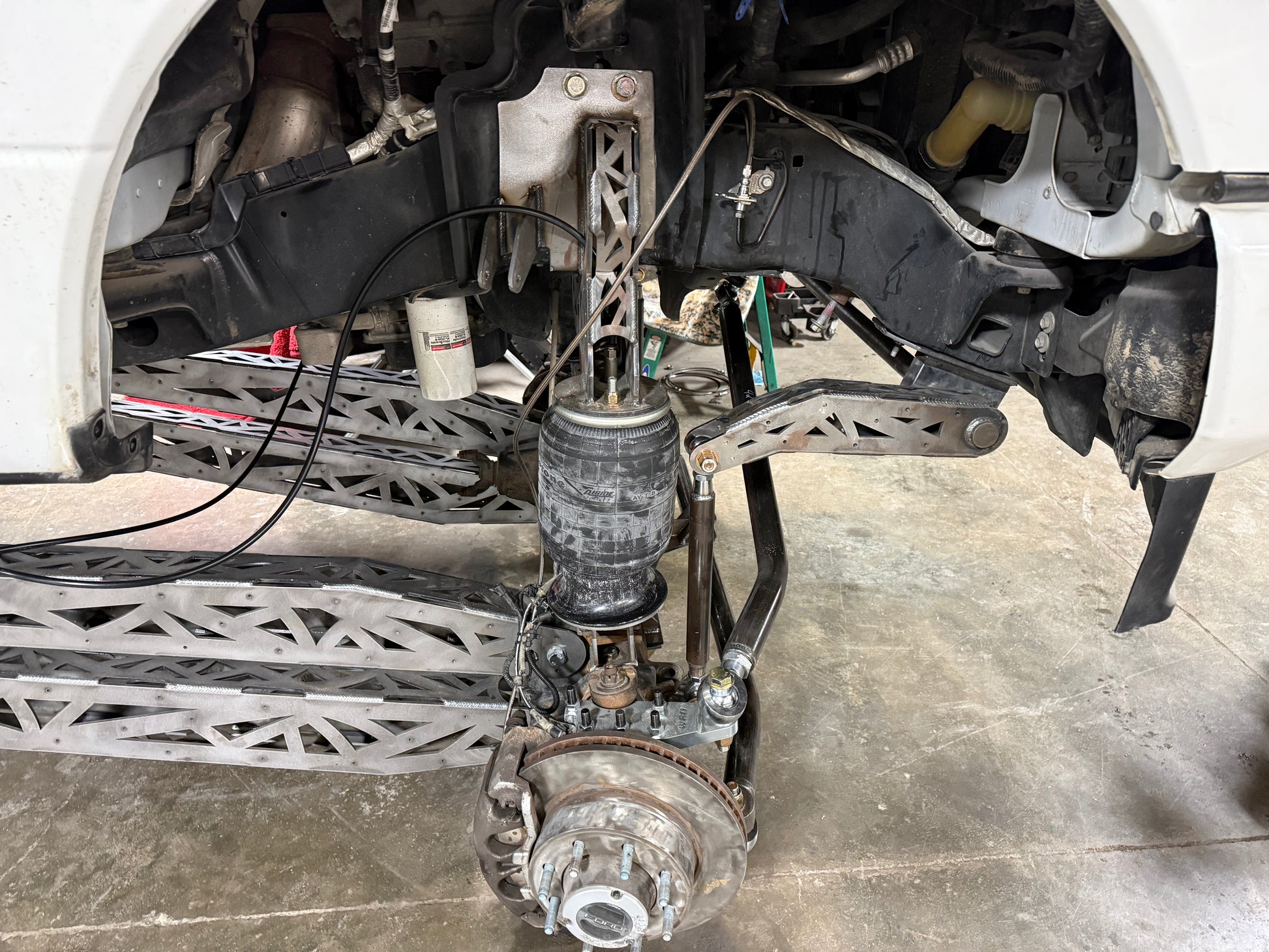

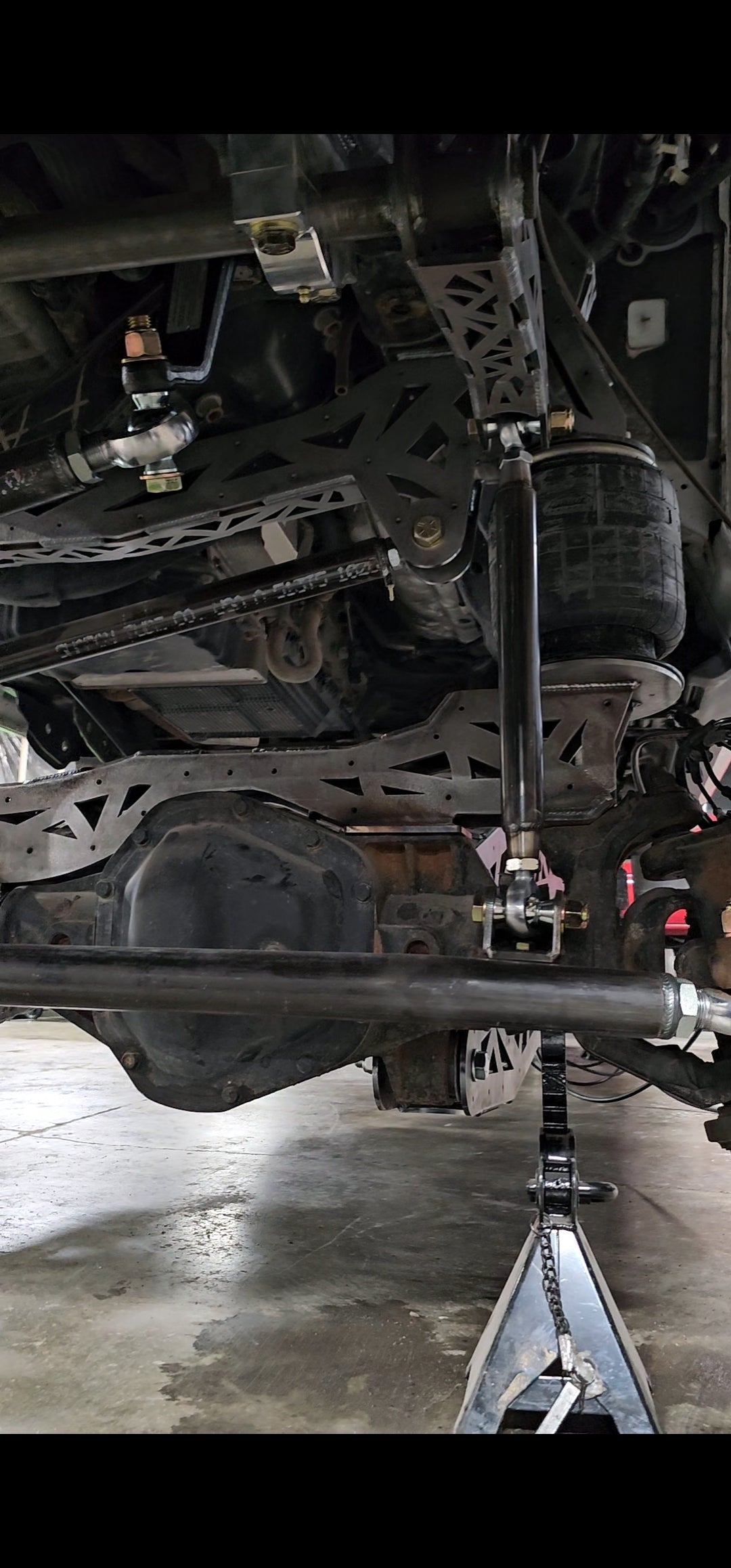

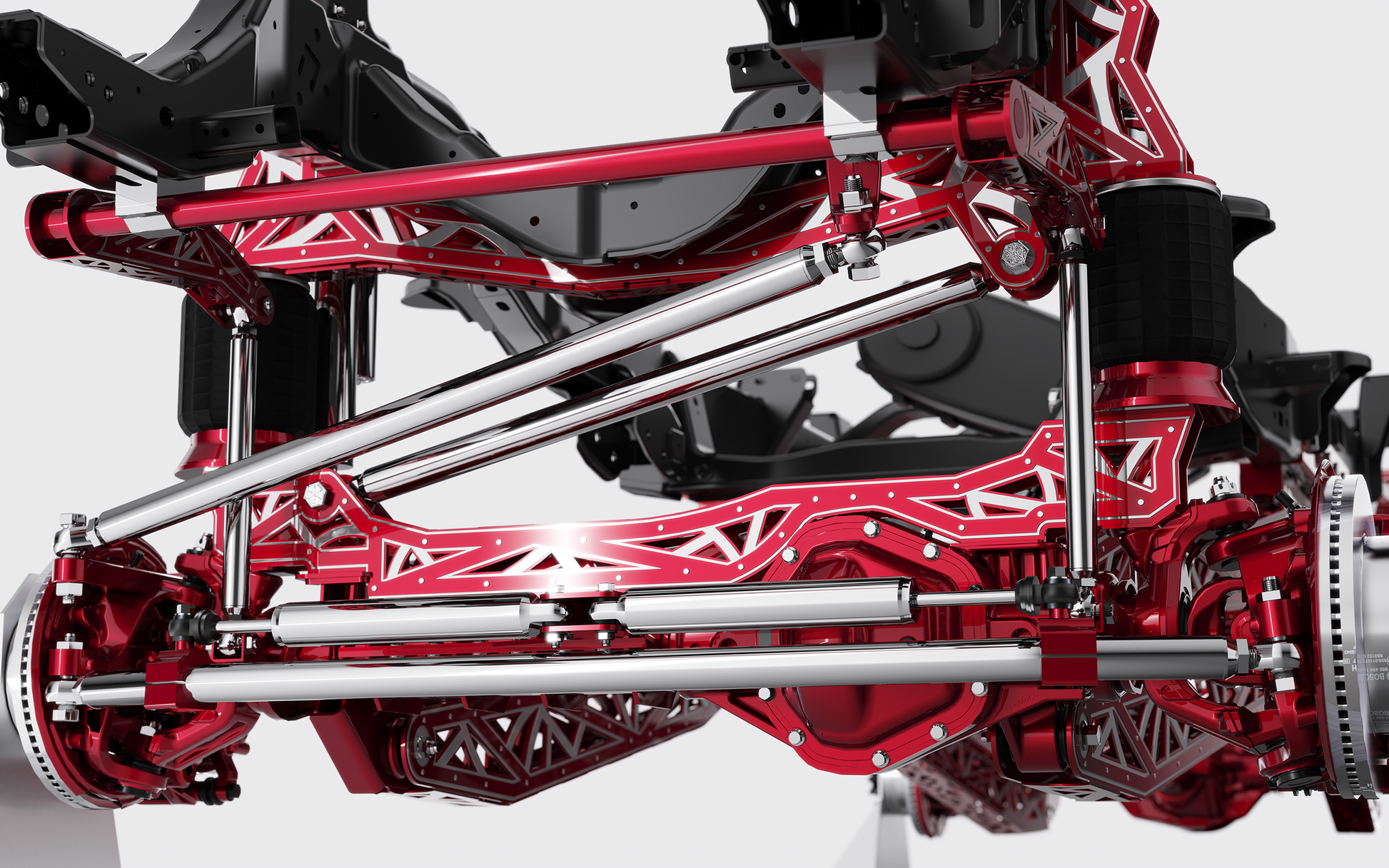

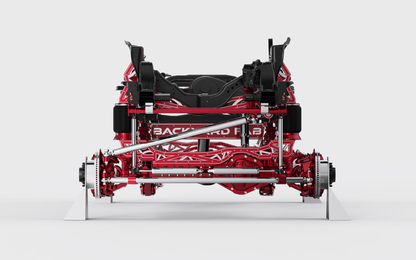

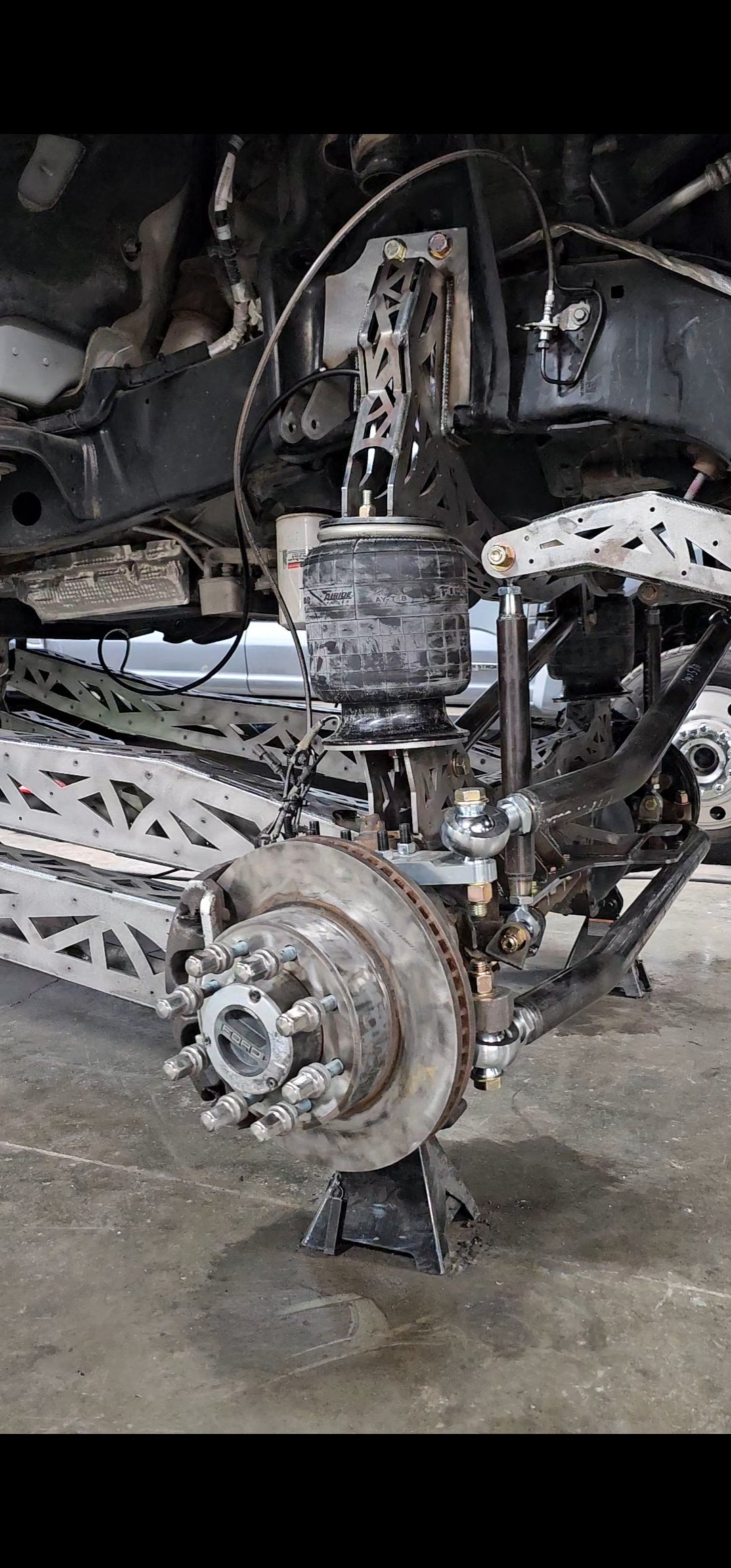

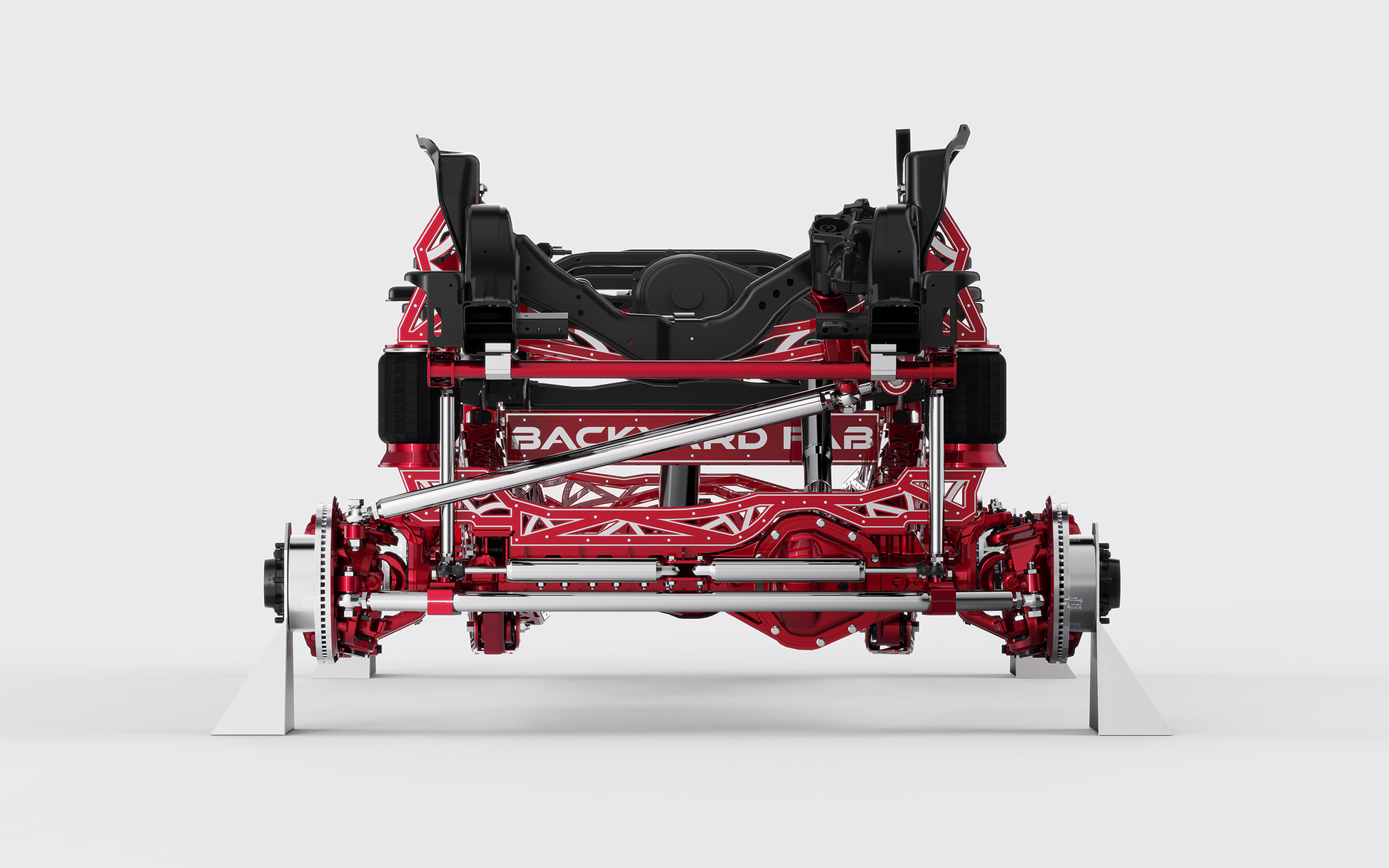

Bolt on front axle truss with ZERO cutting or trimming required, that incorporates your lower bag mount, dual steering stabilizer bracket, and axle side panhard bar bracket!

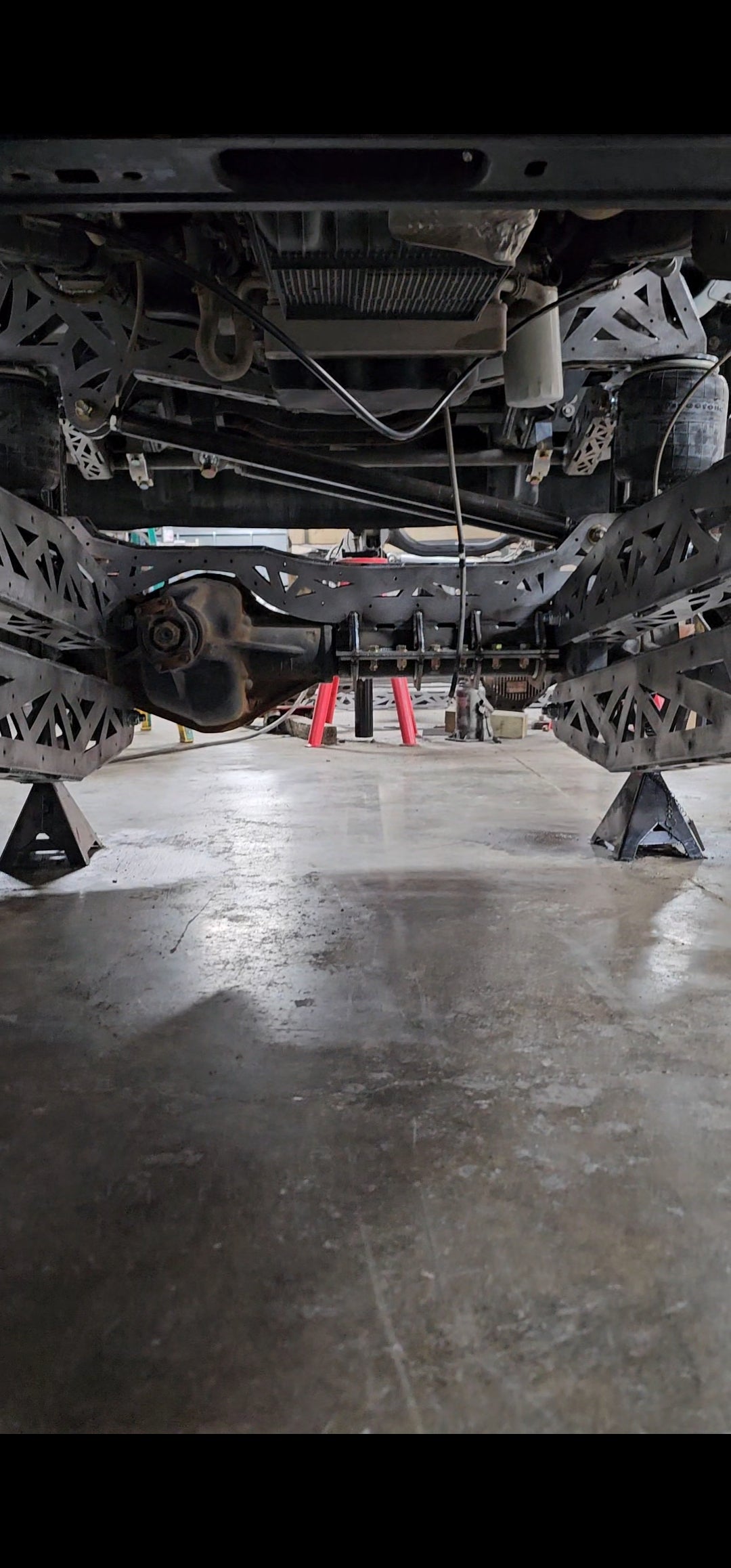

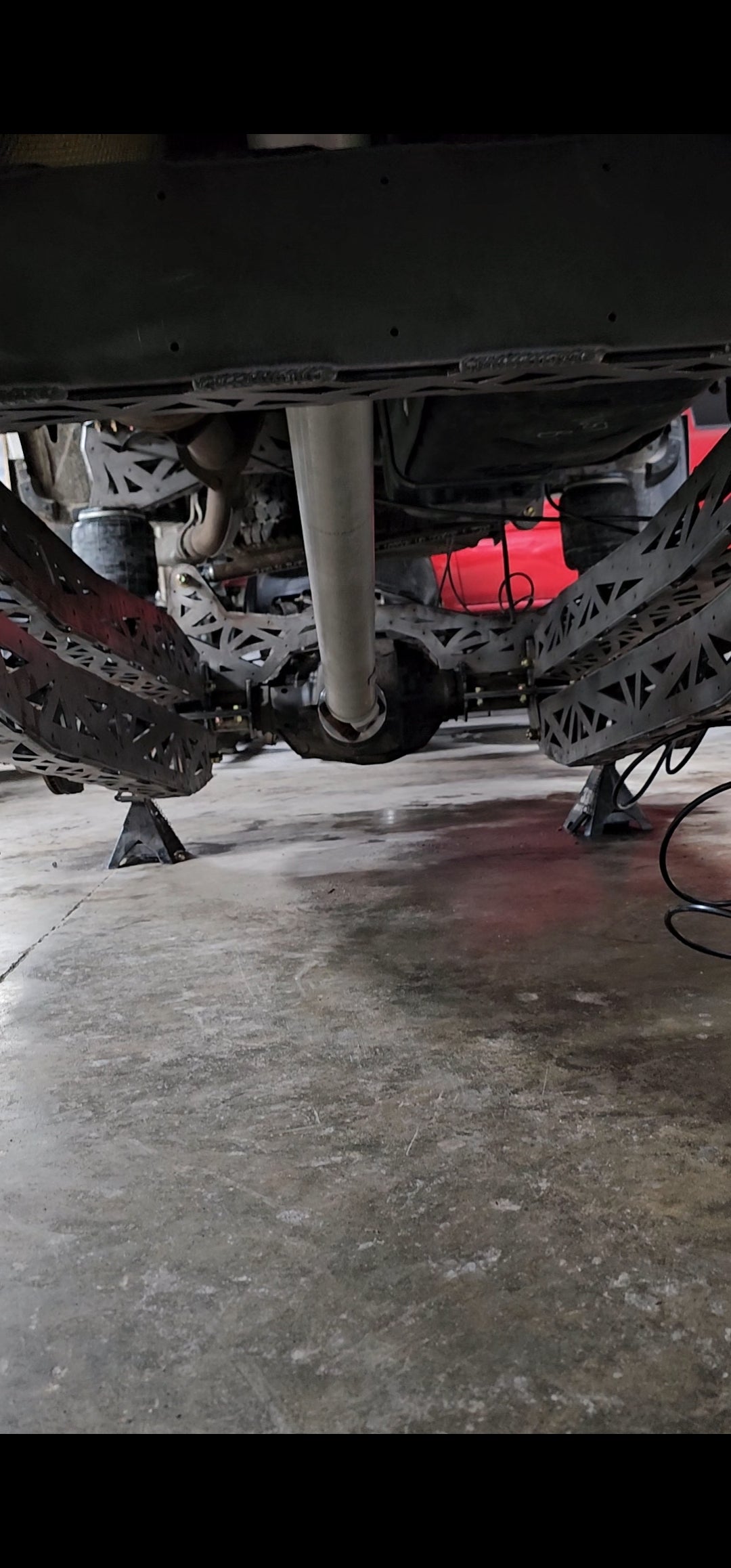

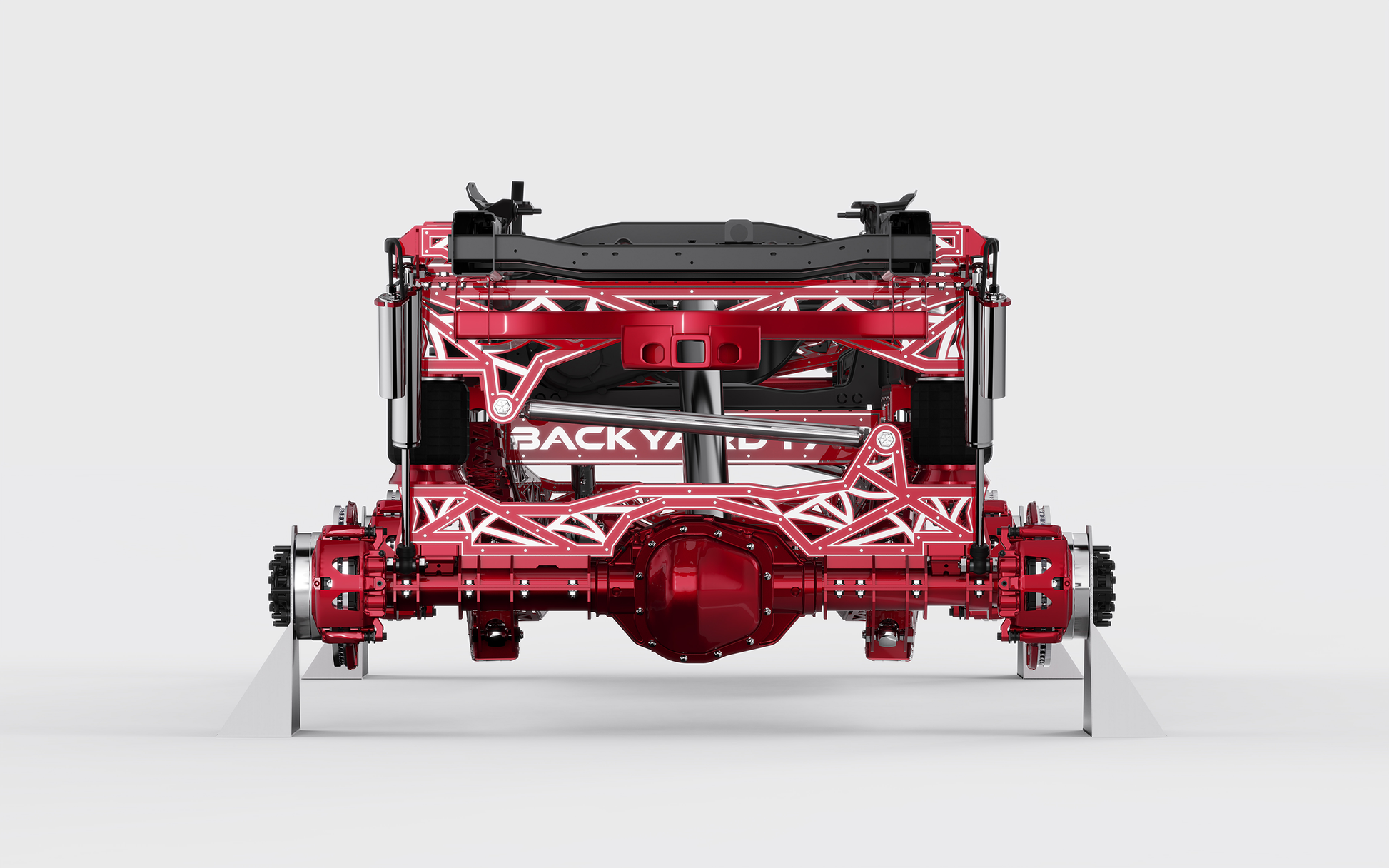

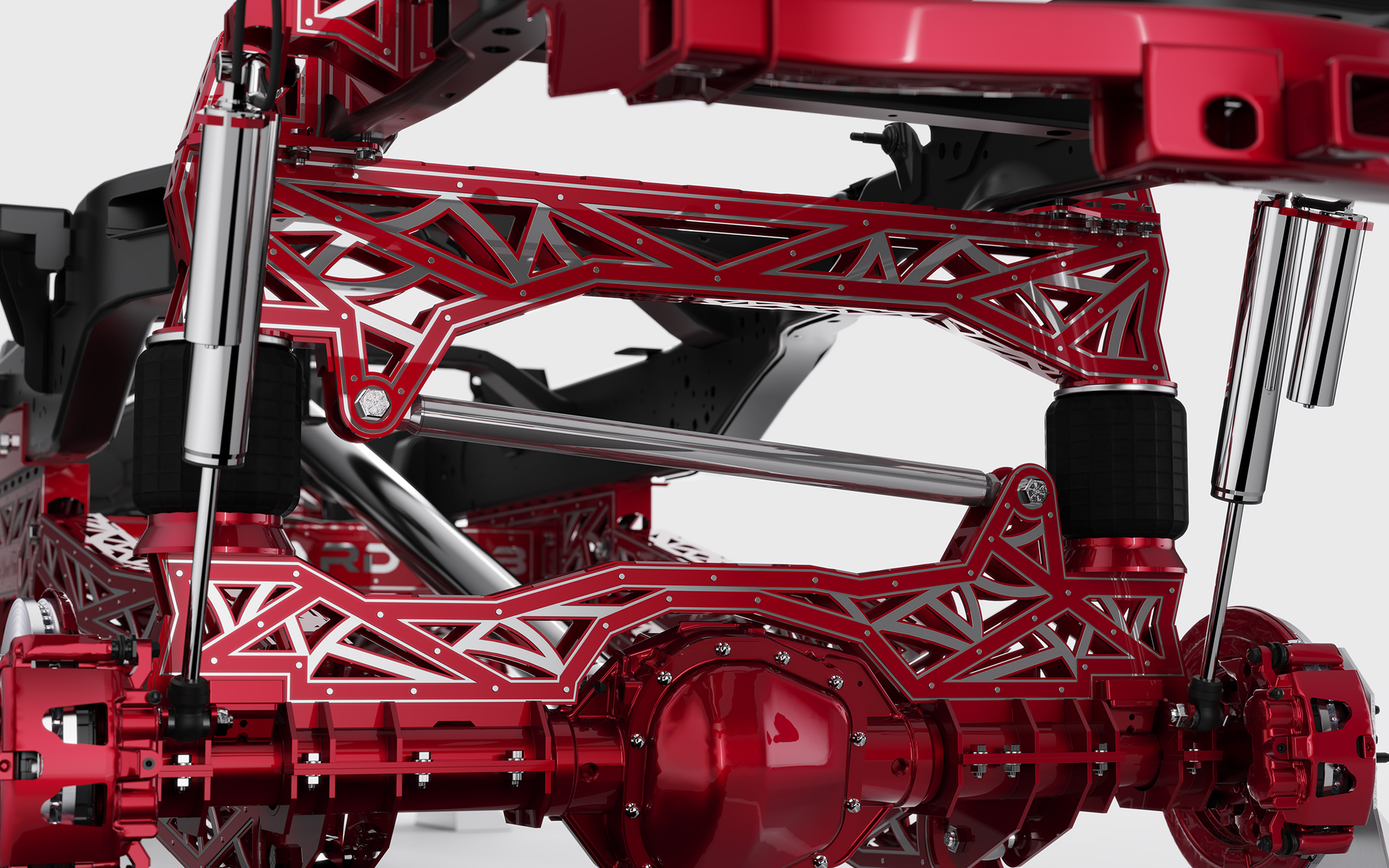

Bolt on rear axle truss with only minor cutting! The factory shock brackets do need cut off, but have no fear! our unique, DOM tube laser cut axle trusses sit completely tight to the tube and cover up the area the shocks sit from the factory! This kit totally relocates the shocks for proper travel. This axle truss also has the 4 link tabs directly engineered into the design! No measuring, no guesswork. bolt on and GO.

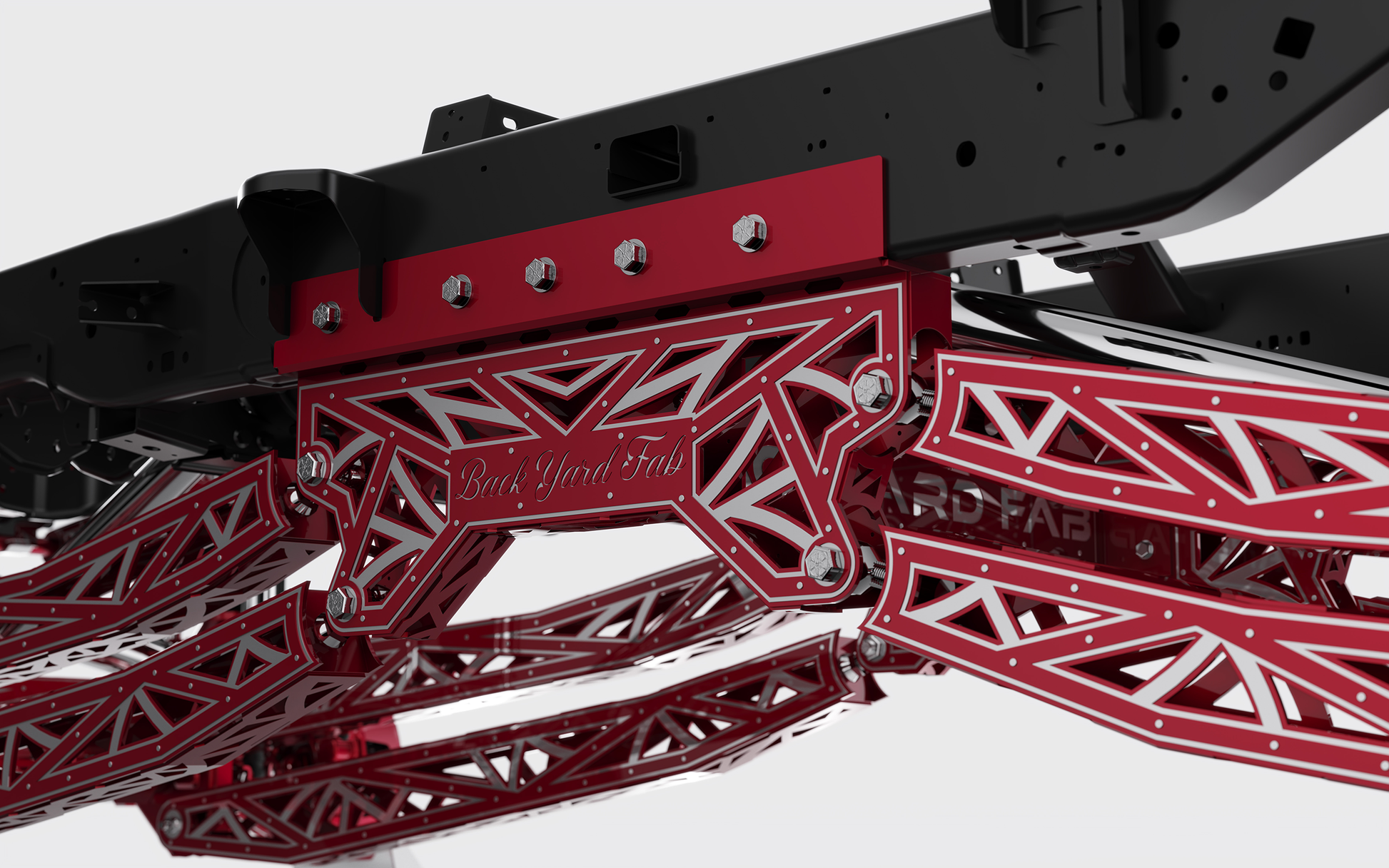

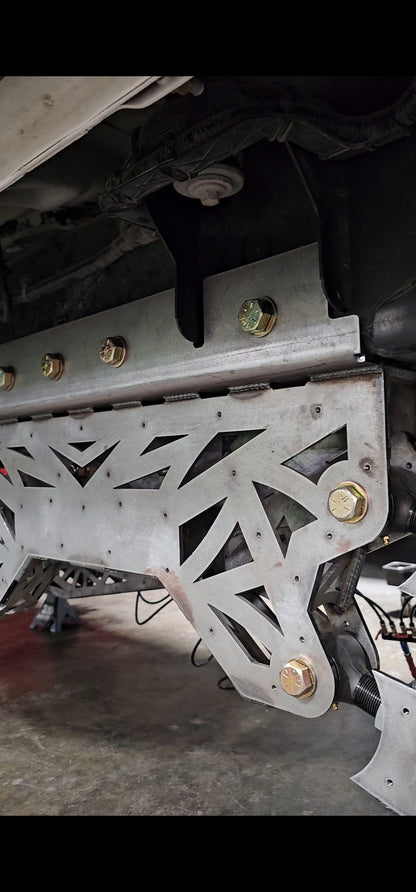

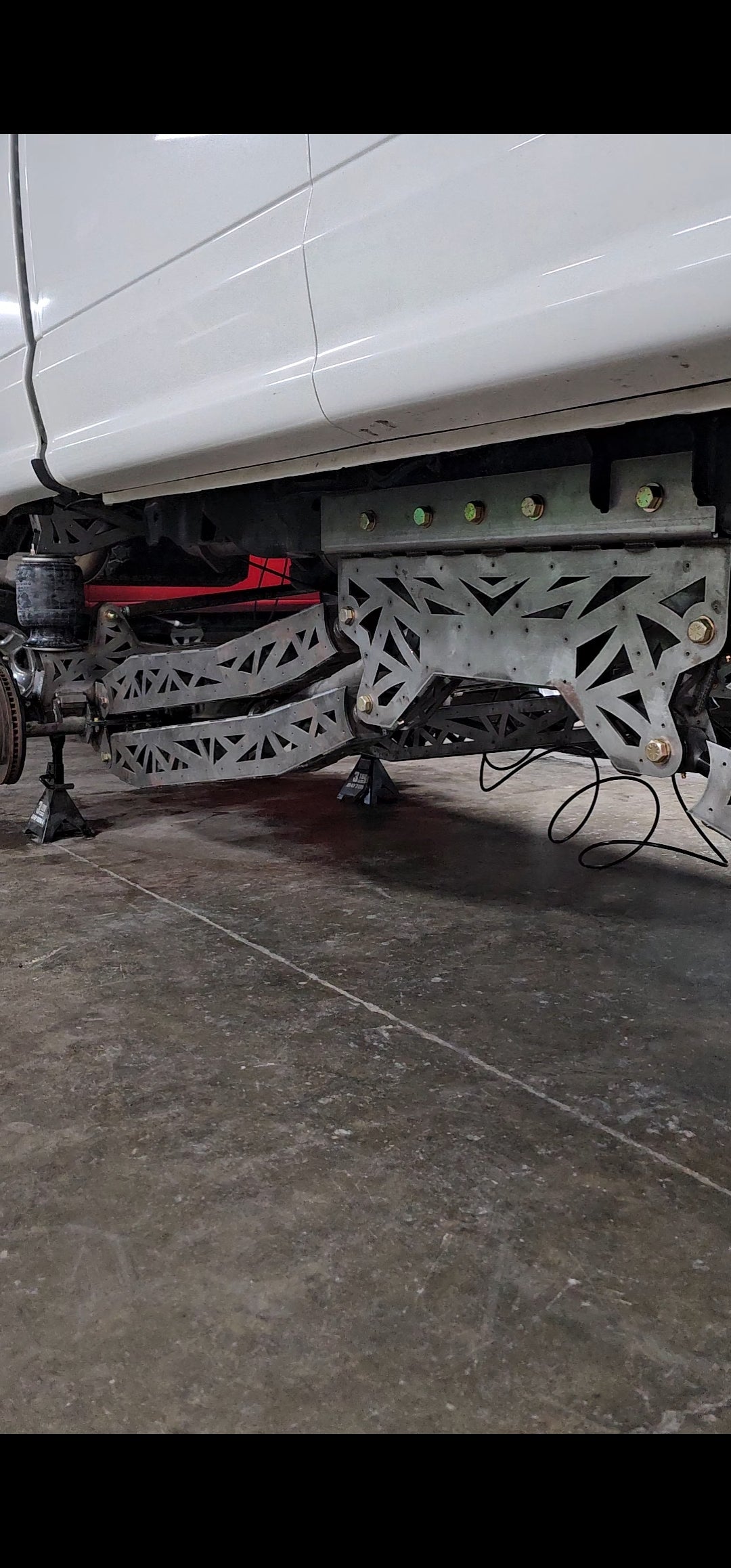

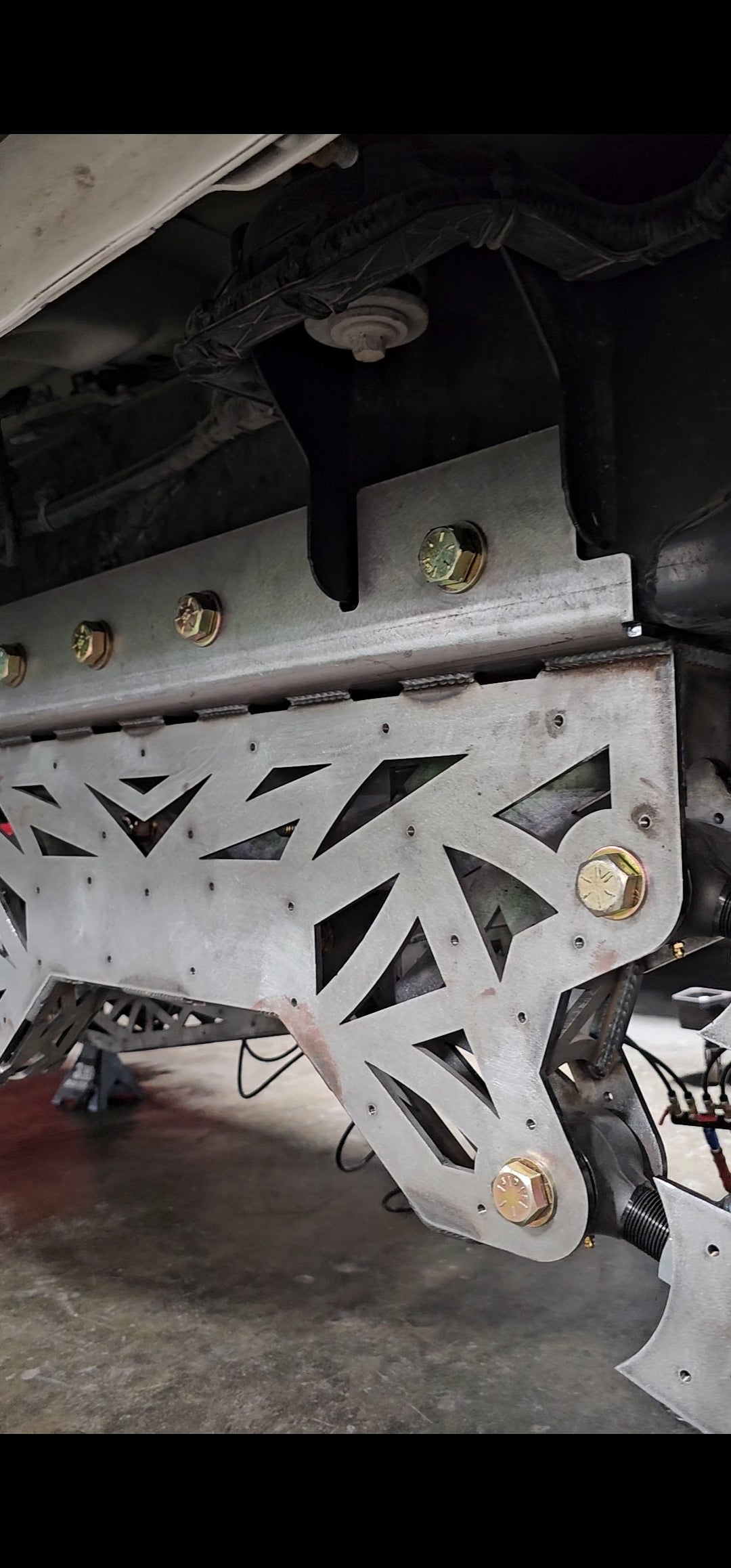

Bolt on rear upper frame crossmember that utilizes a 3 part upper crossmember system that bolts to the frame in ALL FACTORY LOCATIONS not a single hole even needs drilled to install the rear kit! Side to side adjustment engineered to guarantee a perfect fit!
Bolt in front upper frame crossmember with integrated bag mounts, panhard bar drop, and shock tabs to optimize strength and style!

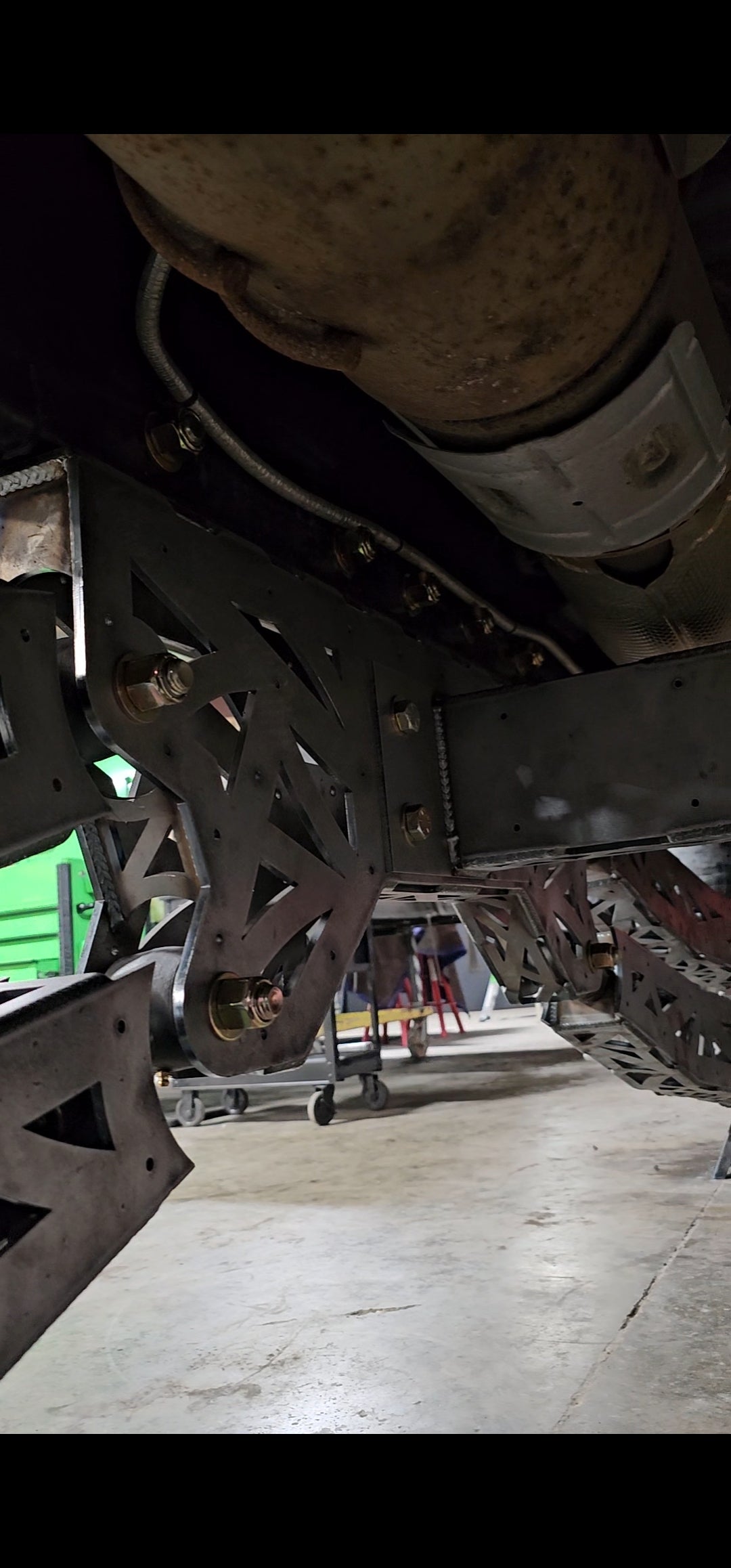

CNC Style Cradle brace for increased stability needed when dropping component's for a lift like this!
Trans crossmember replacement to allow adequate clearance for the included clocking ring!
1.5 Chromoly HD Sway bar with billet mounting blocks, and bolt on frame conversion brackets to eliminate any unwanted bodyroll! 1.5 DOM 3/4 heim sway bar links and lower axle conversion brackets to tie it all together!
Front and rear 1.75 DOM panhard bars, 7/8 extended shank heim joints for huge amounts of adjustment and strength!
2in DOM 1.25 Heim HD Heim steering to keep everything nice and tight unlike ball joints!
6inch drop pitman arm to lower steering angles and improve handling
Reed Racing full high steer knuckle replacement, with ARP Studs and a 1inch steering plate for proper steering angle as well
Kit Also includes!!:
all 4 firestone reverse sleeve bags for increased air capacity and comfort
Fox Resi shocks all 4 corners
Rear driveshaft spacer
A whole new extended front driveshaft
Front and rear direct replacement brake hoses
All Grade 8 bolts and hardware including Nylon locking nuts!
1/4 - 20 Stainless socket cap hardware for easier install over button heads, and for SUPREME Corrosion resistance! REMEMBER! All holes are drilled and tapped for your ease of install!!
Kit DOES NOT include!! but can be included on request!
air management
air tanks
air compressors
If you have made it this far in the description you are in luck! with large orders and parts like this we only require HALF DOWN! to start on the project and to split up the expense for you until the kit is ready to ship! send us an email and we will get you a special invoice sent for your half down! Current lead time is 8-10 weeks! This Price is also presale! Retail will increase to $27,000 USD!
