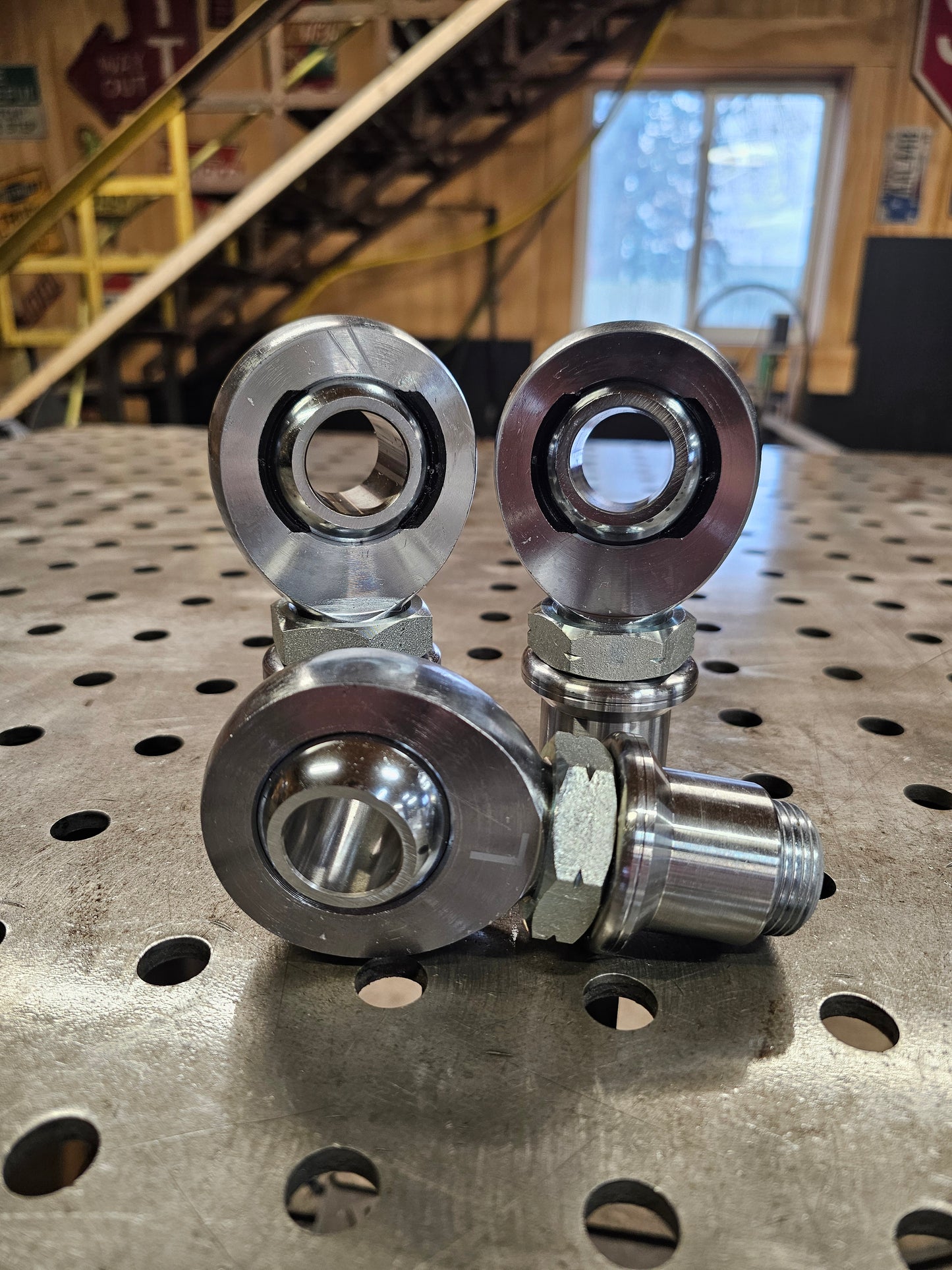

1.25 Heim joints

1.25 Heims are what we use in all of our 4 link applications! listed below are the specifications on these! Price is sold PER PIECE and includes the heim, jam nut, weldable insert, and 1in bore to 3/4 bolt hole misalignment spacers (Not pictured). More insert sizes available upon special request!

Specifications:

• • ​​​​​​​Thread Size: 1 1/4"-12
  • Bore: 1  (1.00)
  • Ball Width: 1 3/8"  (1.375 )
  • Radial Load: 72,000 lbs
  • Chromoly: 4130
  • Teflon Kevlar Liner
• ​​​​​​​Tube Adapter Specifications:
  • ​​​​​​​Thread: 1.25"-12
  • Length: 2.00"
  • Width: 2.00"
  • Material: 1045 Steel
    • Fits in 2" (2.00) Outer Diameter Tube with (.250)Wall Thickness with a 1-1/2” (1.50) Inside Diameter Hole
